Multifunctional

Comprehensive

Internal Resistant Measurement

Lead-Acid/AGM/GEL/EFB

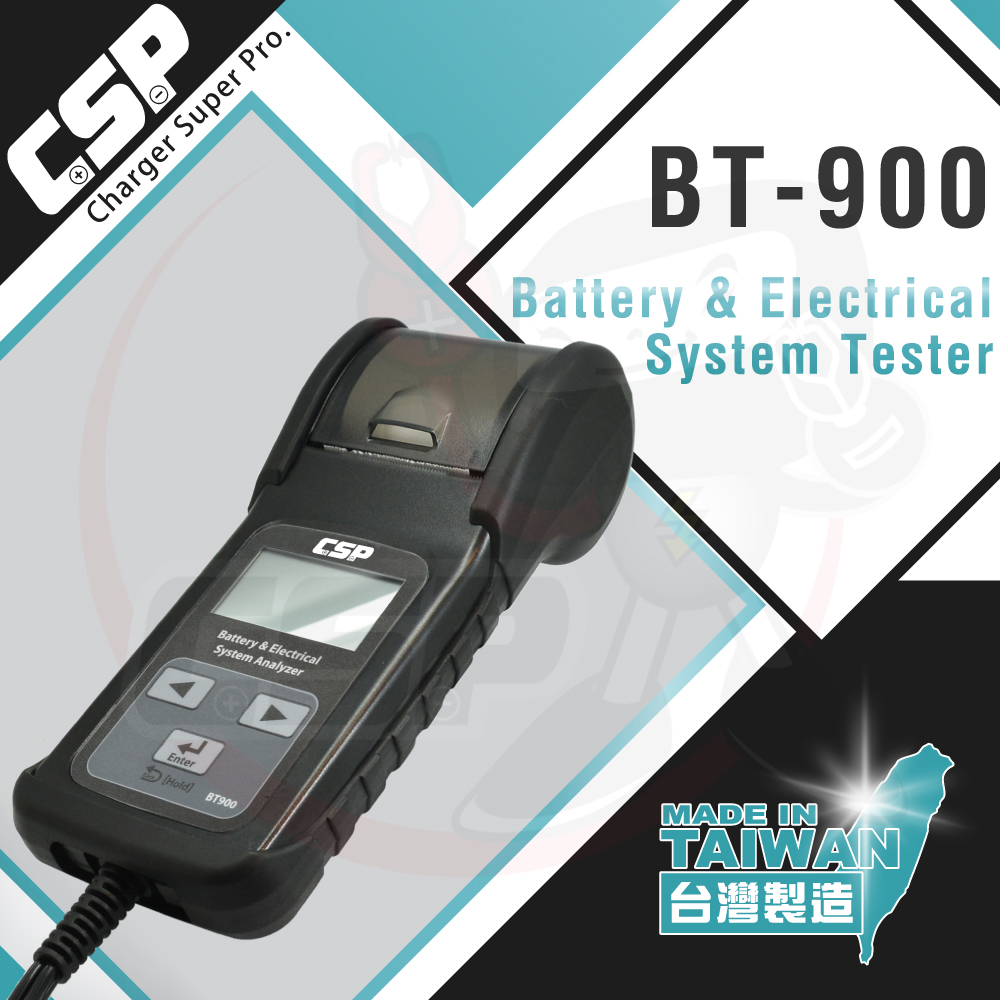

Professional Battery Tester for Automotive Applications

The CSP BT900 Battery Tester is a powerful, reliable, and easy-to-use diagnostic tool designed for both professionals and vehicle owners. With comprehensive testing capabilities and a built-in thermal printer, it delivers fast, accurate results for battery, cranking, and charging system evaluations. Whether in a workshop or in the field, the BT900 helps you make informed decisions about battery maintenance and replacement.

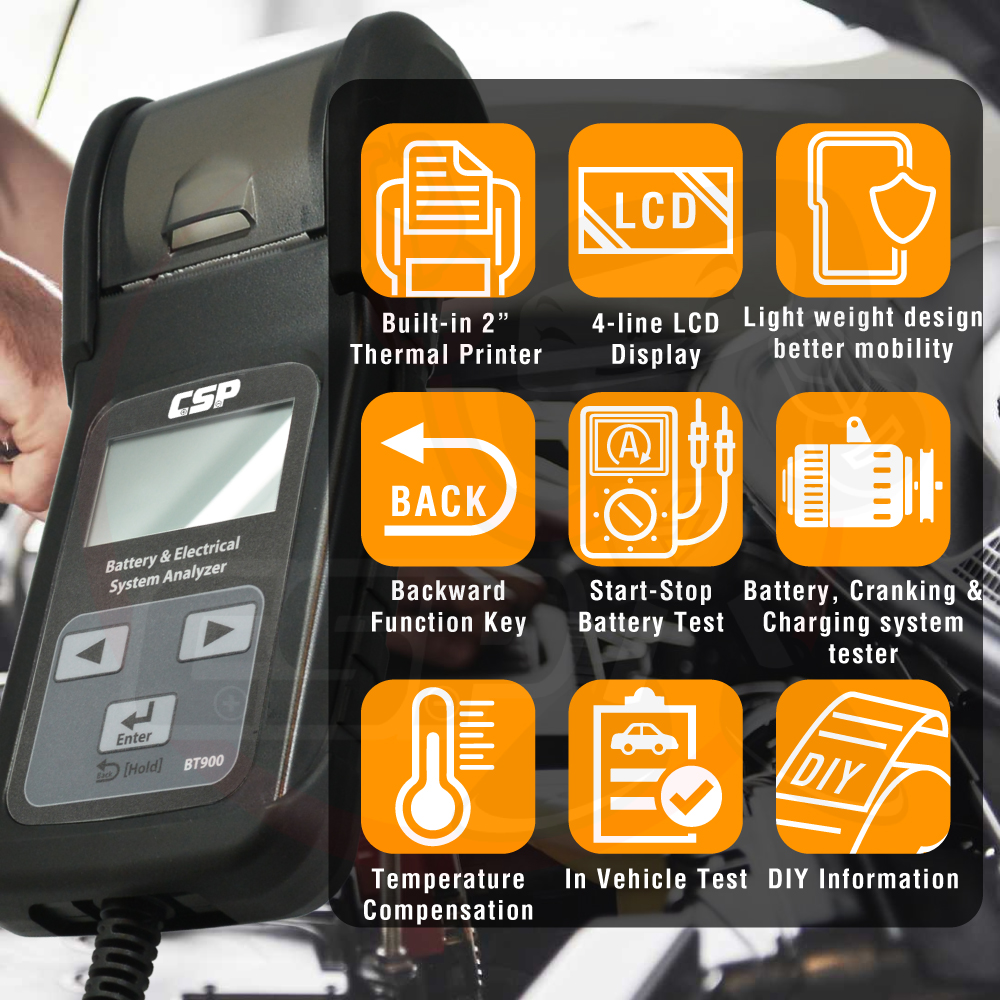

Key Features

Battery, Cranking, and Charging System Testing

• Compatible with 12V batteries and Start-Stop battery systems

• Performs cranking and charging system tests on 12V and 24V systems

• Includes internal resistance (IR) testing

Clear LCD Display

• 4-line display with adjustable brightness for clear visibility in any lighting condition

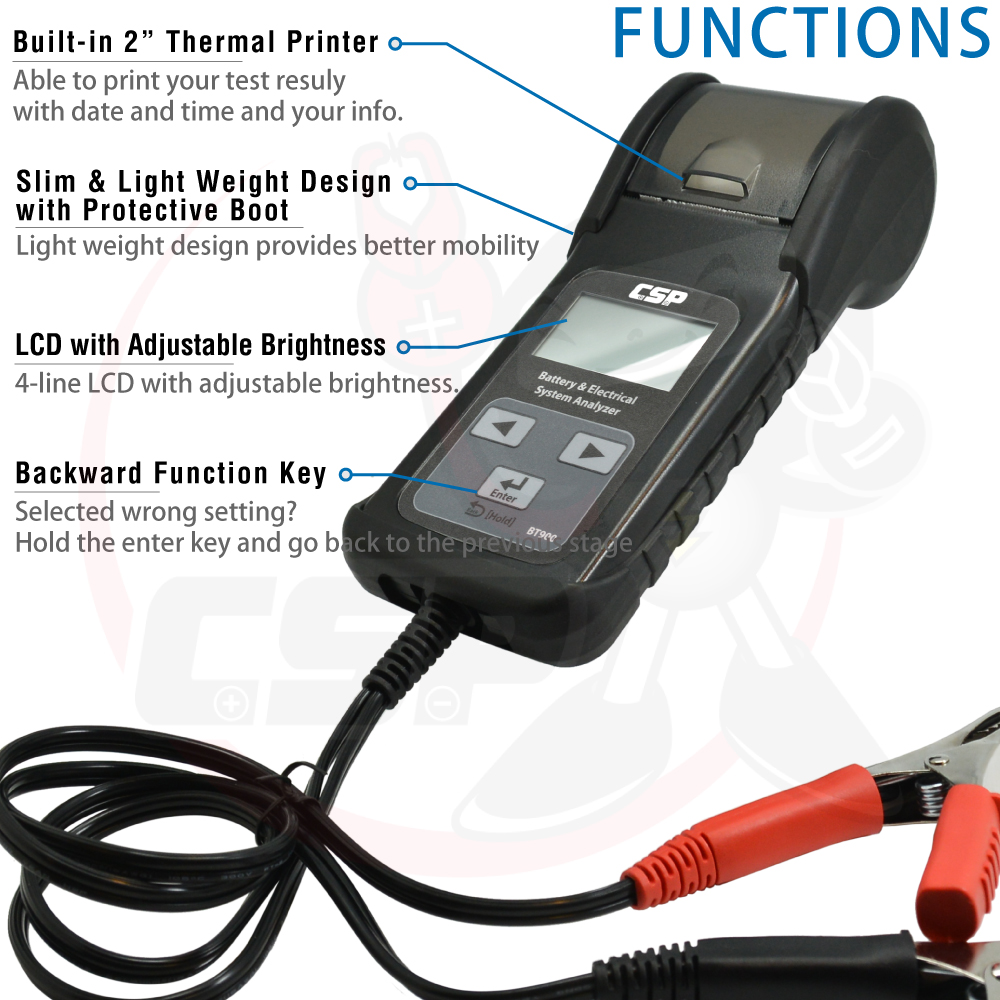

Built-in Thermal Printer

• Equipped with a 2-inch thermal printer

• Easy-load paper design for quick replacement

Start-Stop Battery Support

• Accurately tests modern Start-Stop battery technologies

In-Vehicle Test Capability

• Combines battery and system diagnostics into a single test

• Provides complete printed test reports

Temperature Compensation

• Adjusts automatically for testing in environments above or below 0°C (32°F)

Data Storage and Review

• Stores previous test results for tracking battery health over time

• Supports result analysis and reporting

Date and Time Function

• Internal battery keeps date and time for accurate printed records

Customizable Printouts

• Allows editing of printed information to include company name or notes

Portable Design

• Slim and lightweight construction with protective rubber boot

• Ideal for mobile and workshop use

Print Last Result Function

• Reprint the most recent test result without re-testing

Back Function Key

• Easy navigation with the option to return to the previous step by holding the Enter key

Product Specifications

• Model Number: BT900

• Applications: 12V battery / 12V Start-Stop battery test / 12V & 24V cranking and charging system test / IR test

• Display: 4-line LCD with adjustable brightness

• Printer: Built-in 2” thermal printer

• Supported Battery Types: Flooded, VRLA/GEL, AGM Flat, AGM Spiral, EFB

• Battery Ratings Supported: CCA/SAE, EN, JIS, DIN, IEC, CA/MCA

• Operating Range: 40 ~ 2,000 CCA (SAE)

• Voltage Range: 8V ~ 31.5V

• Dimensions: 250mm (L) x 130mm (W) x 45mm (H)

• Languages: English, French, Spanish, German, Italian, Portuguese

Related Product

Why Choose the BT900?

• Delivers precise and detailed testing for modern vehicle batteries and systems

• Easy to operate, with real-time printouts and data tracking

• Built for durability and portability, ideal for busy workshops or mobile technicians

• Supports multiple languages for global use
